TrailMaster TM15-110
$949.00
* MSRPs exclude tax, license, registration, destination charge and dealer-installed options. Dealer Prices may vary.

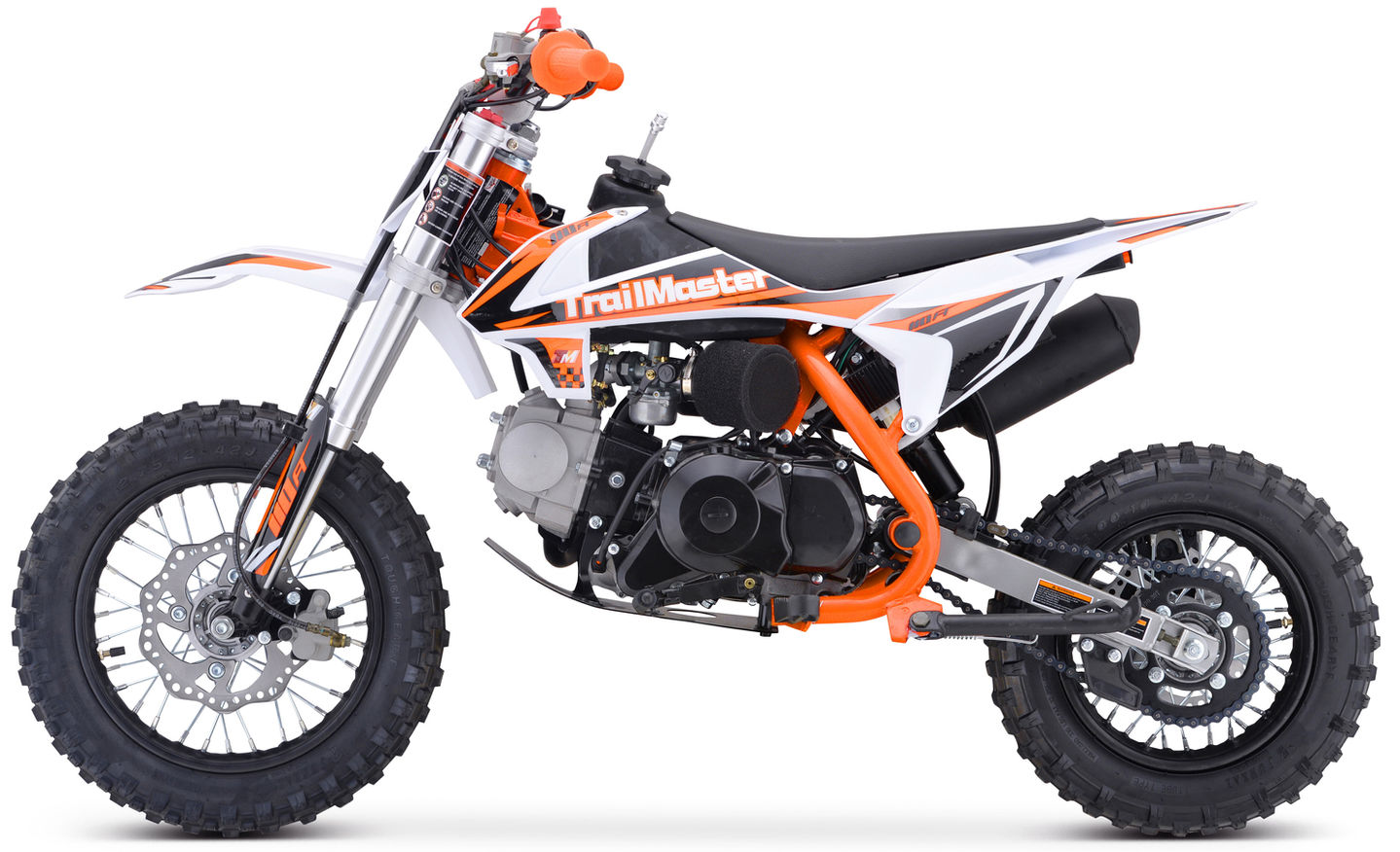

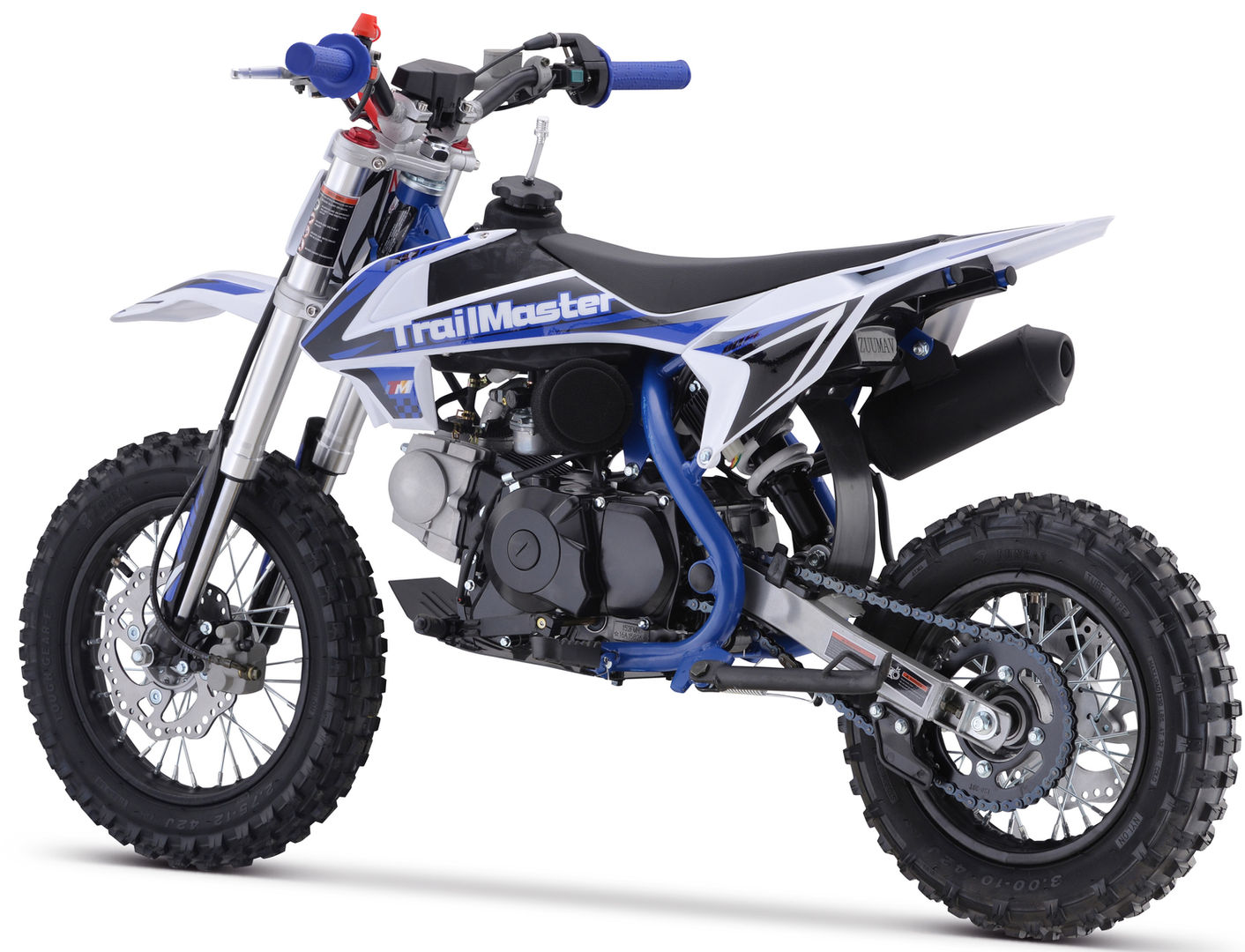

The TM 15‐110 (SEMI‐EStart) is a great Junior size dirt bike. It has a high performance 110cc 4 stroke 6 hp engine with Electric & kick start and a seat height of 24”. It is available in red, blue, green, and orange colors. The TM15 features a Semi‐Automatic transmission with 4 gears (N‐1‐2‐3‐4), front and rear disc brakes, 12” front & 10”Rear Tire and a heavy duty frame built for durability! This is sure to be a HOT seller!
Tech Specs
| Engine Type | 110cc air-cooled 4-stroke OHV |
| Bore and Stroke | 52.4x49.5 mm |
| Compression Ratio | 9.0:1 |
| Induction | |
| Starting Type | Kick & Electric |
| Transmission | Semi-Auto 4-speed |
| Final Drive | |
| Front Suspension | ø33x650mm telescopic fork |
| Rear Suspension | Ø10*270mm |
| Front Brake | Hydraulic Single Piston Caliper, 190mmDisc |
| Rear Brake | Hydraulic Single Piston Caliper, 190mmDisc |
| Front Tire | 2.75x12 Knobby Tire |
| Rear Tire | 3.0x10 Knobby Tire |
| Wheelbase | 39.37" |
| Rake | |
| Trail | |
| Seat Height | 24.41" |
| Ground Clearance | 8.27" |
| Fuel Capacity | 0.58gal ( 2.2L) |
| Curb Weight | 126.8 lbs |
Key Features
- High Performance: 110cc 4-stroke, 6 HP engine with both electric and kick start options.
- Junior-Friendly Size: Designed with a 24” seat height, perfect for younger riders.
- Semi-Automatic Transmission: Features 4 gears (N-1-2-3-4) for smooth and easy control.
- Reliable Braking: Equipped with front and rear disc brakes for superior stopping power.
- Durable Build: Heavy-duty frame ensures long-lasting use on tough terrains.
- Upgraded Tires: 12” front and 10” rear tires for enhanced stability and grip.
- Vibrant Colors: Available in red, blue, green, and orange for personalized style.
The TM 15-110 (SEMI-EStart) combines power, convenience, and durability—making it the ultimate dirt bike for junior riders!
Manuals & Instructions
TM15 Assembly Instruction
TM15 Assembly Video
