TBM X4
Price
$9,999.00
* MSRPs exclude tax, license, registration, destination charge and dealer-installed options. Dealer Prices may vary.

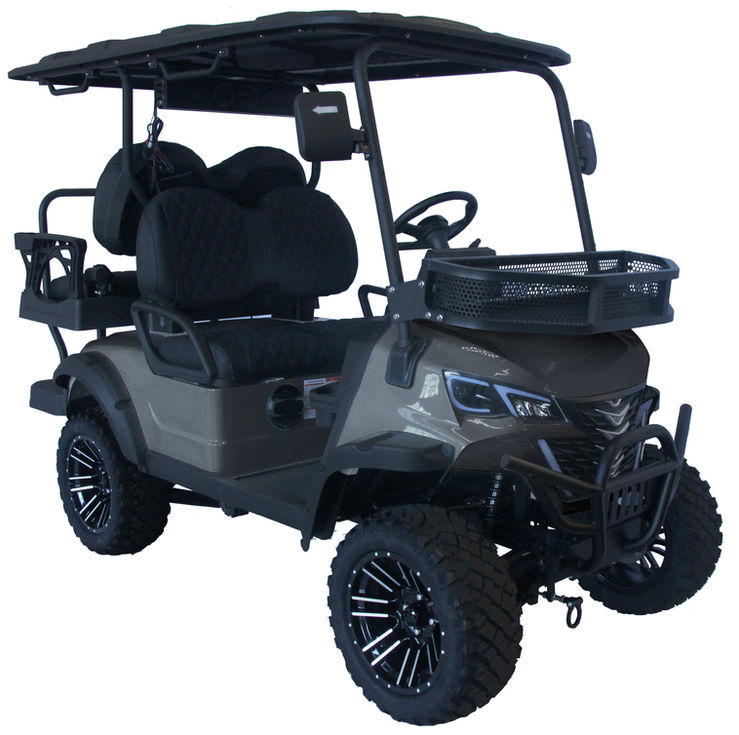

The TBM X4 is a an electric golf cart with a 48v system centered around a 5kw 105ah battery capable of an average 48 mile range. With a foldable windshield, carbon fiber steering wheel, 22” aluminum rims and led head lights and blinkers this is machine turns heads. It has a high strength carbon steel frame with comfortable cushion seats front and rear.
Tech Specs
| TBM X4 | |
| General Specification | |
| Length × Width ×Height | 114"X47.2"X72.8"(2900mm×1200mm×1850mm) |
| Wheelbase | 67"(1700mm) |
| Ground clearance | 13" (330mm) |
| Net weight | 900 lbs |
| Loading capacity | 770lbs/350kg; 4 people |
| Brake Type (front/rear) | Foot Pedal Four Wheel Hydraulic Disc Brake |
| Control Mode | Steering Wheel |
| Suspension front/rear | Double A arm Independent Suspension/Rear Towing Arm |
| Power | 5KW |
| Transmission ratio | 12 : 1 |
| Vehicle voltage | 48V |
| Battery capacity | 105AH |
| Maximum Speed | H: 20 m/h ; L: 12 m/h |
| Mileage at full charge | 48 Mile/ 80 km |
| Climb ability | 20% |
| Minimum truning radius | 16 feet |
| Power Off Switch | One on the battery, one on the lower right side of the rear seat |
| Frame | High Strength Carbon Steel Integral Frame, Corrosion Resistance |
| Steering Wheel | Carbon fiber coated steering wheel |
| Tires | 22X10-14 Front and rear |
| Rims | Aluminum |
| Body | Automotive color baking process with UV protection |
| Frame | High strength carbon steel integral frame, phosphating coating, high strength, corrosion prevention |
| Instrument | 10.1" LED touched screen with Carplay, Radio, Bluetooth, Reverse image, Odometer, Battery Capacity Display and etc. |
| Electric System | |
| Battery | 48v105AH Lithium Iron Phosphate battery |
| Motor | 6.3 KW Three-phase asynchronous AC motors |
| Electromagnetic braking | With Electromagnetic braking , Manual release mounted on the motor |
| Controller | Enpower-3818 |
| Charger | Lithium special car charger |
| Lighting system and horn | LED headlights, turn signal lights, taillights, horn |
| Reverse Alarm | Yes |
Key Features
| Foldable windshield | |
| Aluminum Front cargo rack | |
| Front bumper | |
| Roof and underbody led ambiance lights with remote control | |
| Sound bar speaker | |
| Side mirrors with turning signal | |
| Reverse camera | |
| Back storage basket | |
| Artificial leather seat cushion and backrest | |
| USB-A and USB-C output | |
| Cup holder in both front and back | |
| Front trailer hook | |
| Colors: Red, Pearl Blue, Grey, White, Orange, Chameleon |
