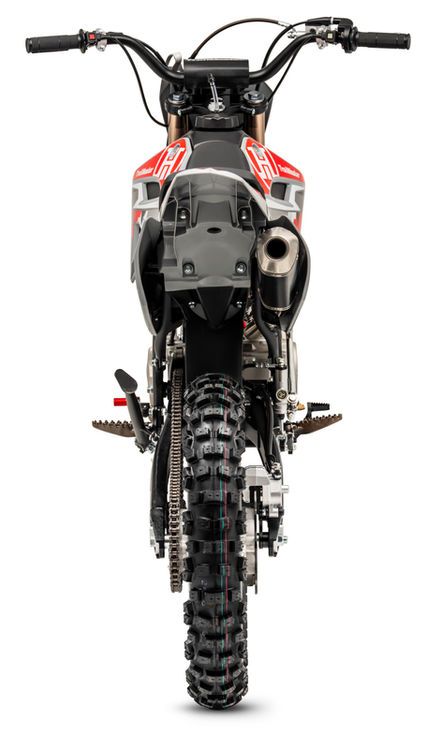

TrailMaster SX150
$1,899.00
Trailmaster cooperating with JHL Offroad introduces The SX150, a premium PRO-Series mid size
dirt bike. It has both a kick start and a “ELECTRIC START” to start a high performance extremely
reliable Zhongshen 140cc 4 stroke 9.1hp engine, 19/16 wheels, a seat height of 32.7”and a slim
weight of 189lbs. It is available in red, blue, and green colors. The SX150 features a 4 speed
manual transmission with front and rear disc brakes, and inverted front shock.
This is sure to be a HOT seller! Additional standard premium items with our Pro-Series line include;
both electric and kick start, Powerful 140cc oil cooling engine, extra after-market Nibbi PE22
performance carburetor for ultimate performance, Newly innovated frame design for smoother
riding, High performance inverted front shock absorber, 33” seat high perfect for wide groups
of riders, Wide and high quality non-slip seat for comfortable riding, Nitrogen air gas rear shock
absorber w/aluminum linkage, Performance stainless steel muffler, Alloy handle bar, Alley
upper and lower triple clamps, Alloy foldable handle levers, High quality reinforced alloy rims
and hubs, Large 19” front and 16”d rear Yuanxin Tires, and superior quality front and rear disc
brakes.
Tech Specs
General Information
• Single cylinder, four stroke , air-cooling /Oil-cooling
• Displacement 140 CC
• Max Power 9.11 hp
• Max Torque 9.7/5500(1±1.5%)
• Compression Ratio 9.0:1
• Shift Type: Four gear, non-circulate gear
• Start Type Electric / Kick Start
• Ignition CDI
• Min. Fuel Consumption: ≤ 367g/kw.h
• Min turning radius: 1900 mm
• Lubricant Type # SF15W/40
• Transmission: Chain Drive
Size Data
• Overall Size (L x W x H) 71.31 x 29.16 x 43.34 Inch
• Wheel Base 49.25 Inch
• Seat Height 32.70 Inch
• Ground Clearance 13.26 Inch
• Fuel Capacity 1.56 Gal
• Alloy 19/ 16 Rims, Alloy Hubs
• Tires YUANXING FT: 70/100-19 - RR: 90/100-16
Frame/Suspension/Brake/Wheel System
• High quality Steel Frame
• Inverted front shocks non-adjust
• Rear Not adjustable mono shock
• Upper & Lower Connecting Board Alloy
• Handle Lever Alloy Foldable
• Front Brake Disc
• Rear Brake Disc
• Exhaust: Stainless steel muffler
Packing and Loading
• Packing Size 63.82*17.92*33.49”
• N.W 189.2 LBS
• G.W 237.6 LBS
Configurations And Specifications Subject To Change Without Notice. “BV POWERSPORTS, LLC”
Key Features
• With both electric and kick start
• Powerful 140cc oil cooling engine
• Comes with extra after-market Nibbi PE22 performance carburetor for ultimate
performance
• Newly innovated frame design for smoother riding
• High performance inverted front shock absorber;
• With 33” seat high perfect for wide groups of riders
• Wide and high quality non-slip seat for comfortable riding
• Nitrogen air gas rear shock absorber w/aluminum linkage
• Performance stainless steel muffler
• Alloy handle bar
• Alley upper and lower triple clamps
• Alloy foldable handle levers
• High quality reinforced alloy rims and hubs
• Large 19” front and 16”d rear Yuanxin Tires;
• Superior quality front and rear disc brakes
