Blazer4 200EX
$3,999.00
* MSRPs exclude tax, license, registration, destination charge and dealer-installed options. Dealer Prices may vary.
The TrailMaster Blazer4 200EX is an upgrade from the Blazer4 150X, now with a bigger 169cc GY6 engine and equipped with EFI. With fuel injection, users don’t need to worry about starting in cold weather or at high altitudes; Furthermore, users don’t need to fix or replace carburetors after periods of inactivity with the unit. This is a full size 4-seat go kart that accommodates up to 4 adults! It is has a heavy duty frame, net weight 578 lbs with a max load capacity of 800 lbs! Both front driver and passenger seats are adjustable with driver side pedal to seat back adjustment from 36” to 42”, for driver/passenger up to 6’2 in height; Front seat to rear seat distance is 26 inches, for passengers up to 6’2 in height! With bigger front & rear tires of 20 x 7-8 / 21 x 10-10 and a special gear ratio, gives plenty of power to take off and pull 4 people. Top speed up to 38 MPH.
COLOR
Tech Specs
| Engine Type | 4-stroke, single cylinder, air cooled |
| Displacement | 168.9 cc |
| Bore & Stroke | 2.4x2.28 inches |
| Max HP | 11.1 HP/8000rpm |
| Max Speed | 43 mph |
| Max Torque | 8.1 bs ft/6000rpm |
| Starting System | Electric |
| Emission | EPA certificated |
| Transmission | Automatic CTV with reverse |
| Driveline | Chain / Dual Wheel Drive |
| Front Suspension | Double A-arm |
| Rear Suspension | Swing arm |
| Front Brake | Hydraulic Disc Brakes |
| Rear Brake | Hydraulic Disc Brakes |
| Front Tire | 20x7-8 |
| Rear Tire | 22x10-10 |
| Length | 85 inches |
| Width | 53.1 inches |
| Height | 57.5 inches |
| Wheelbase | 59 inches |
| Seat Height | 13.8 inches |
| Ground Clearance | (min) 6.7 inches |
| Weight GW/NW | 573 / 485 lbs |
| Max Load | 500 lbs |
| Fuel Capacity | 2.25 gal |

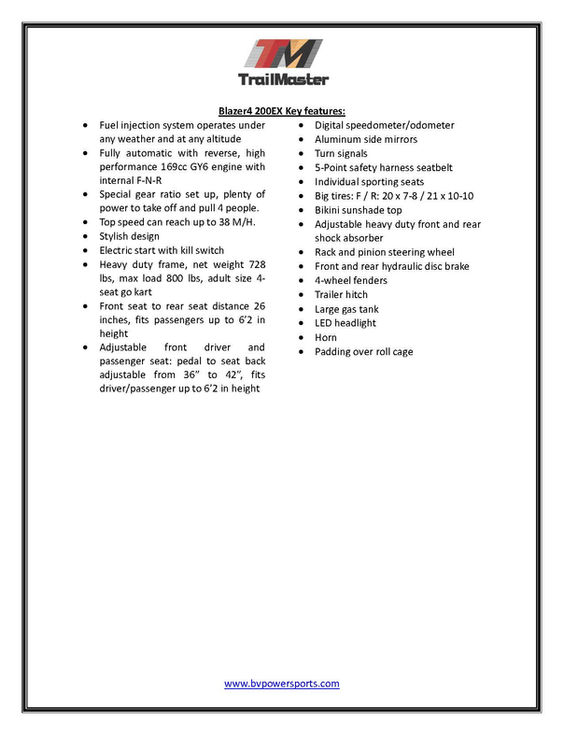

Key Features
- Fuel injection system operates under any weather and at any altitude
- Fully automatic with reverse, high performance 169cc GY6 engine with internal F-N-R
- Special gear ratio set up, plenty of power to take off and pull 4 people.
- Top speed can reach up to 38 M/H.
- Stylish design
- Electric start with kill switch
- Heavy duty frame, net weight 728 lbs, max load 800 lbs, adult size 4-seat go kart
- Front seat to rear seat distance 26 inches, fits passengers up to 6’2 in height
- Adjustable front driver and passenger seat: pedal to seat back adjustable from 36” to 42”, fits driver/passenger up to 6’2 in height
- Digital speedometer/odometer
- Aluminum side mirrors
- Turn signals 5-Point safety harness seatbelt
- Individual sporting seats
- Big tires: F / R: 20 x 7-8 / 21 x 10-10
- Bikini sunshade top
- Adjustable heavy duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- 4-wheel fenders
- Trailer hitch
- Large gas tank
- LED headlight
- Horn
- Padding over roll cage
Manuals & Instructions
