200 XRX
$3,349.00
* MSRPs exclude tax, license, registration, destination charge and dealer-installed options. Dealer Prices may vary.
Take on the toughest terrain in style with the TrailMaster 200 XRX Go Kart with premium features including polished aluminum wheels, a digital speedometer/odometer, top mounted hunting lights and a bikini sunshade top! But it's not just for show. Underneath all that glitz is a rugged, tubular steel frame with top brush guard, side rails and an enclosed belly pan to take the abuse of harsh off-roading. Power comes from a 4-stroke, single cylinder, air cooled 168.9cc, 11.1hp GY6 technology engine mated to an automatic CVT clutch for a 43 mph top speed and excellent low-end torque. There's enough horsepower to haul light loads on the rear utility rack or to pull light-duty trailers with the included ball hitch. Driving is effortless and fun with rack-and-pinion steering, convenient reverse shifting, easily reachable, dash-mounted controls and dual sport bucket seats with 5 point harnesses. Drivers seat adjusts from 38 to 43 inches to the pedals while tilt steering tilts. Center and side mount mirrors, F&R hydraulic disc brakes, high/low beam headlights and turn signals add an extra measure of safety. The dual A-arm front and swing-arm rear suspension system provides excellent handling and maneuverability. The 200 XRX blazes new trails as the only 200cc GoKart on the market with this many nice features!

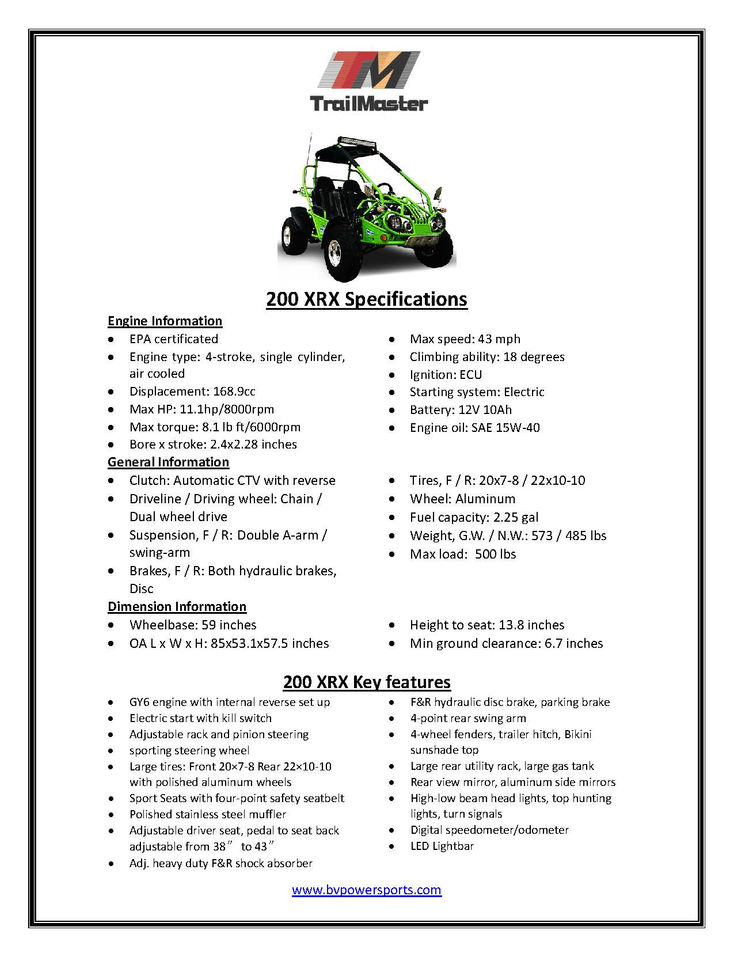

Tech Specs
| Engine Type | 4-stroke, single cylinder, air cooled |
| Displacement | 168.9 cc |
| Bore & Stroke | 2.4x2.28 inches |
| Max HP | 11.1 HP/8000rpm |
| Max Speed | 43 mph |
| Max Torque | 8.1 bs ft/6000rpm |
| Starting System | Electric |
| Emission | EPA certificated |
| Transmission | Automatic CTV with reverse |
| Driveline | Chain / Dual Wheel Drive |
| Front Suspension | Double A-arm |
| Rear Suspension | Swing arm |
| Front Brake | Hydraulic Disc Brakes |
| Rear Brake | Hydraulic Disc Brakes |
| Front Tire | 20x7-8 |
| Rear Tire | 22x10-10 |
| Length | 85 inches |
| Width | 53.1 inches |
| Height | 57.5 inches |
| Wheelbase | 59 inches |
| Seat Height | 13.8 inches |
| Ground Clearance | (min) 6.7 inches |
| Weight GW/NW | 573 / 485 lbs |
| Max Load | 500 lbs |
| Fuel Capacity | 2.25 gal |
Key Features
- GY6 engine with internal reverse set up
- Electric start with kill switch
- Adjustable rack and pinion steering
- sporting steering wheel
- Large tires: Front 20×7-8 Rear 22×10-10 with polished aluminum wheels
- Sport Seats with four-point safety seatbelt
- Polished stainless steel muffler
- Adjustable driver seat, pedal to seat back adjustable from 38″ to 43″
- Adj. heavy duty F&R shock absorber
- F&R hydraulic disc brake, parking brake
- 4-point rear swing arm
- 4-wheel fenders, trailer hitch, Bikini sunshade top Large rear utility rack, large gas tank
- Rear view mirror, aluminum side mirrors
- High-low beam head lights, top hunting lights, turn signals Digital speedometer/odometer
- LED Lightbar
